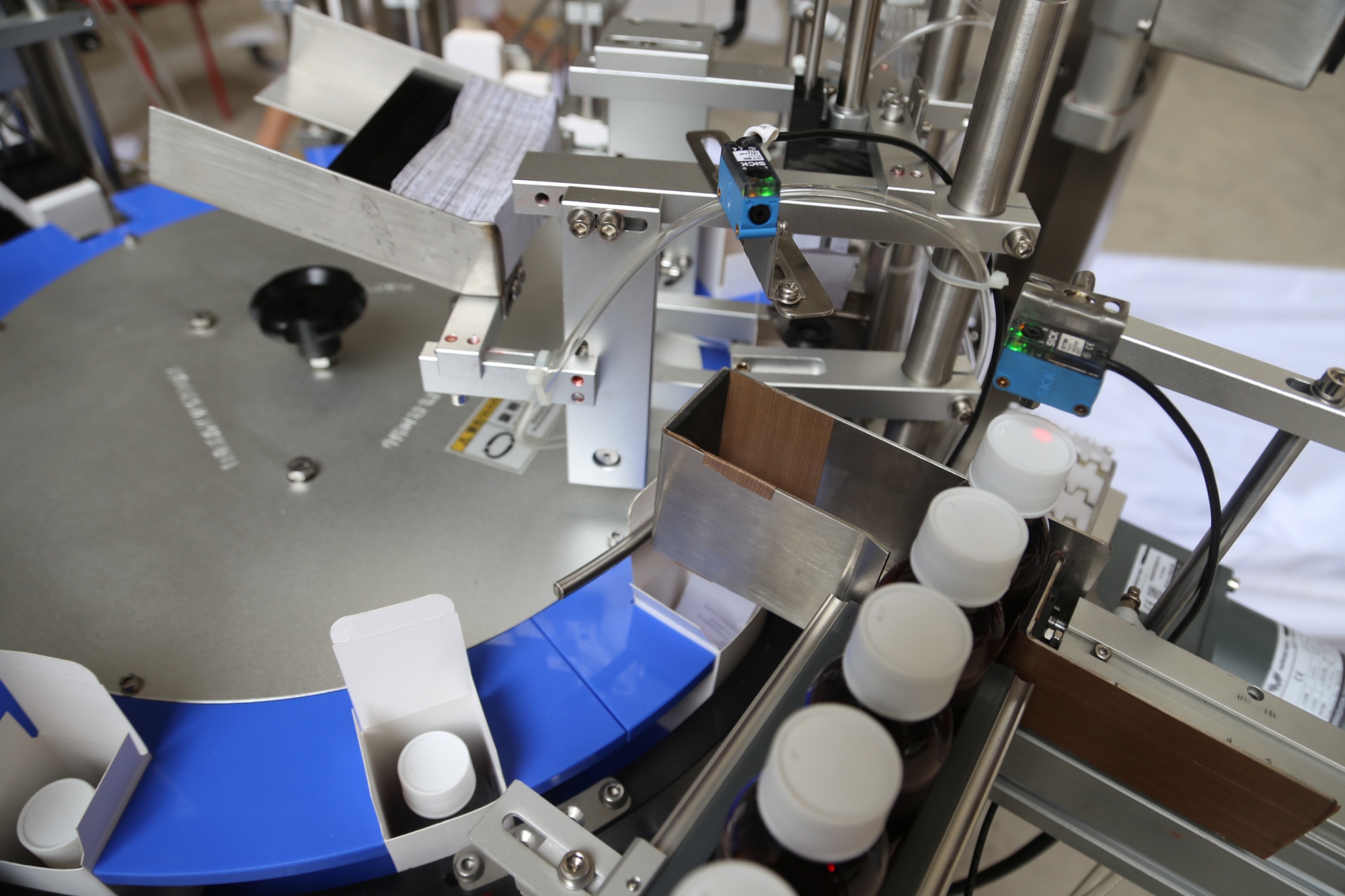

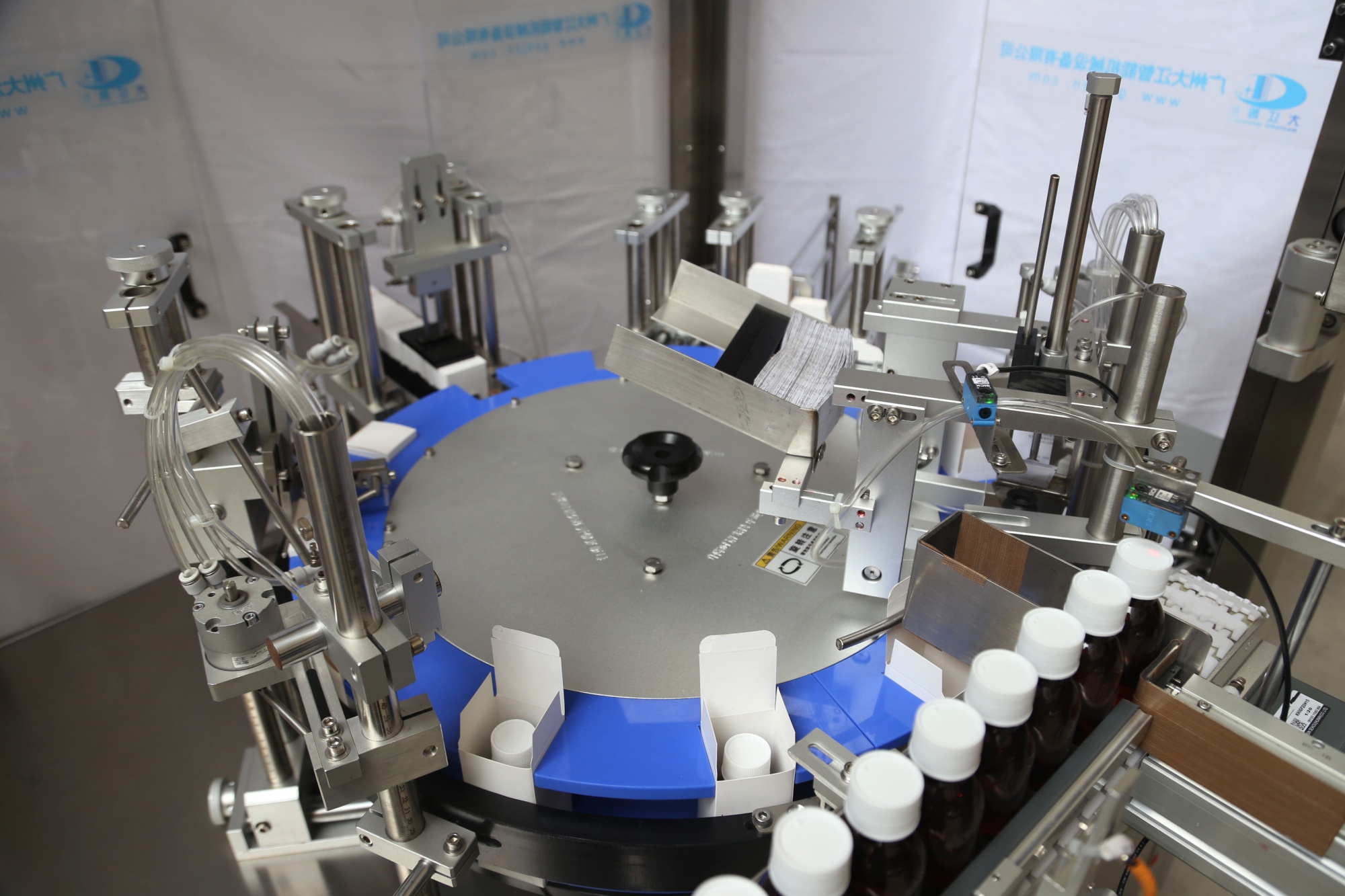

Cartoning (box) Machine for cosmetic products or food products

Product Detail

Rotatry cartoning(box) packing machine

machine is designed for round/square medical bottle, food products, cosmetic products or other products which needs to put into a square box. It is specially design to pack small products into different square box. The machine is a vertical type with multiple function and require short changeover time.

Optional function: leafflet insert(mannual insert), hot melt glue, ribbon date code, etc.

Packing process:

push box into star wheel---Fold lower small flap of box---Press lower big flaps---Flatten both big flaps---Products into box---fold uppper small flap---Press both upper big flaps---Flatten both big flaps---Finished products outfeed


Specification:

Model No.

DDU-50D

Production speed

20-50/分钟box per min

  Paper box's largest size

200 x 120 x 120mm

Paper box's smallest size

60 x 20 x 20 mm

Paper quality of carton

250-350g/m3

Motor KW

1/4HP 15:1

1.5KW/H

Power supply

单相220V 50/60HZ single phase

Machine noise

80dB

Gas source

0.5-0.8 Mpa

Compress air consumption

260L/min

Machine measurement:

L 1100 x  W 1500 x  H 1450 mm

Machine weight

450Kg
